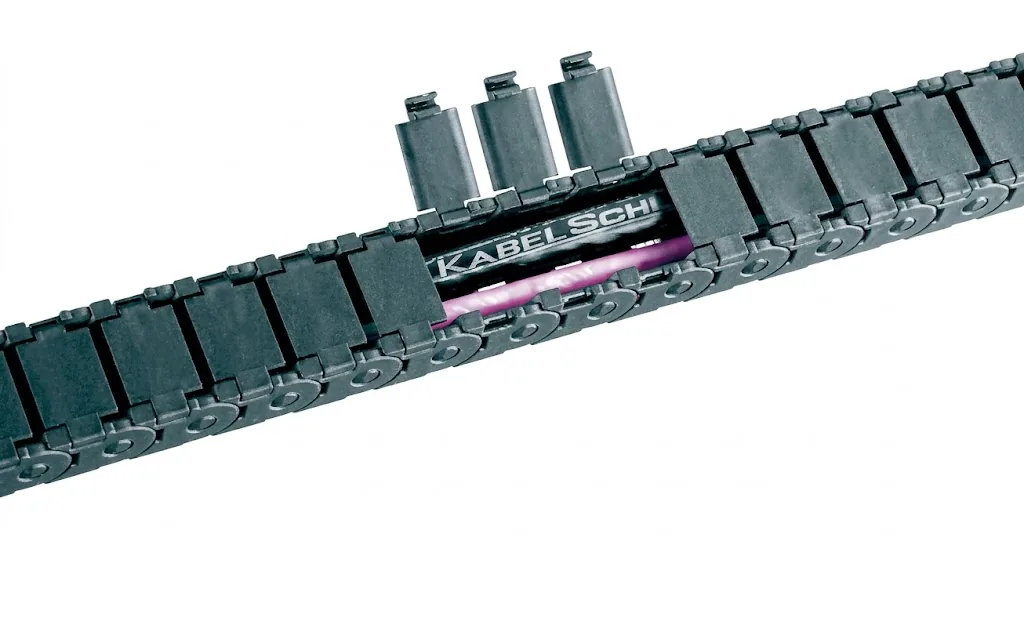

MONO Series cable carrier
Basic Line · Plastic · Open
The MONO series from Tsubaki Kabelschlepp is a compact cable carrier: small in size, easy to install and ideal for applications with limited space.
- Inner height
- 10–15 mm
- Inner width
- 6–40 mm
- Bending radius
- 18–50 mm
- Travel length
- up to 70 m
- Pitch
- 13–20 mm
Types
3 types in the MONO Series
Click a type for all dimensions, performance and options. Every type can be assembled to size, complete with cables.
| Type | Inner height | Inner width | Pitch | Bending radii | Max. cable Ø | Travel length, gliding | Version | |
|---|---|---|---|---|---|---|---|---|
 | MONO 013 | Inner height10 mm | Inner width6–20 mm | Pitch13 mm | Bending radii20–37 mm· 3 | Max. cable Ø8 mm | Travel length, gliding40 m | VersionOpen |
 | MONO 0202 | Inner height11 mm | Inner width6–20 mm | Pitch20 mm | Bending radii18–50 mm· 4 | Max. cable Ø8.5 mm | Travel length, gliding70 m | VersionOpen |
 | MONO 018 | Inner height15 mm | Inner width10–40 mm | Pitch18 mm | Bending radii28–50 mm· 3 | Max. cable Ø12 mm | Travel length, gliding70 m | VersionOpen |
About the series
About the MONO Series
The MONO is the compact cable carrier from the Basic Line of Tsubaki Kabelschlepp: small in size, easy to install and intended for places where space is limited. It is an open plastic cable carrier with high torsional rigidity. You will find it in 3D printers, CNC machines, measuring and test installations, assembly lines and machine building.
- Cost-efficient cable carrier
- Many types available directly from stock
- Long service life
- High torsional stiffness
Widely used in
- Types
- The MONO comes in 3 types: MONO 013, MONO 0202, MONO 018.
- Sizes
- The inner height ranges from 10 to 15 mm, the inner width from 6 to 40 mm. All types are available in fixed inner widths.
- Bending radius
- The bending radius ranges from 18 to 50 mm.
- Pitch
- The pitch is 13 to 20 mm.
- Cables
- The largest type takes cables up to 12 mm in diameter.
- Travel length
- The travel length is up to 70 m, depending on type, additional load and installation.
- Open
- Depending on the type, the links can be opened on the inside and outside, or cannot be opened.
- Environment
- According to the type data, the series is suitable for indoor and outdoor use, in clean environments.
Wisman Techniek in Ruurlo is the exclusive dealer of Tsubaki Kabelschlepp in the Netherlands. Popular MONO types are in stock; we assemble other versions to order, cut to length and, if required, complete with cables and hoses.
