Welke kabeldoorvoer past bij mijn kast?

Dat hangt af van drie vragen: zitten er connectoren aan de kabels, moet de doorvoer waterdicht zijn en hoeveel kabels gaan er door één opening. Met die antwoorden wijzen wij de juiste oplossing en het juiste formaat aan.

Kunnen kabels met voorgemonteerde connectoren de kast in?

Ja. Deelbare wartels en kabeldoorvoerframes openen, zodat geconfectioneerde kabels erin gelegd worden zonder de connector te verwijderen.

Wat is het voordeel van een doorvoerplaat boven losse wartels?

Eén plaat vervangt een rij wartels. Kabels worden door een membraan gedrukt, zonder moeren aan te draaien. Dat scheelt montagetijd en is voordeliger, met behoud van afdichting en trekontlasting.

Levert Wisman ook de kabelrups die naar de kast loopt?

Ja. Wij zijn specialist in het hele kabeltraject: van de kabelrups en de kabels die bewegen tot de doorvoer in de kastwand, de trekontlasting en de EMC-aarding erachter.

Cable entries.The last section of the cable route.

A cable that moves perfectly in the carrier has to enter the cabinet just as well. Wisman supplies the complete Detas Ultra range: from split glands and frames to entry plates, brushes, strain relief and EMC clamps. With advice on what fits where.

View the product groups Request advice

Black cable entry frame with various cables, including a D-sub connector, through grey sealing modules

Product groups

The right entry for every cabinet wall

Six solutions, each with its own strength. Not sure? See below which situation fits yours.

Split cable glands

Cables with connector through a single round hole, without cutting.

7 series · 35 varianten

Black cable entry frame with various cables, including two thick black cables with connectors

Cable entry frames

Many cables, including with connectors, sealed through one cut-out.

10 series

Grey cable entry plate with four cables fed through, two white and two black

Cable entry plates

Quick and affordable: cables without a connector through a membrane plate.

11 series · 188 varianten

Black rectangular cable entry with brushes, with two black cables passing through

Brush seal

Neat, dust-resistant entry where watertightness is not needed.

4 series · 16 varianten

Strain relief

Secure and organise cables in the cabinet, in accordance with EN 62444.

5 series · 70 varianten

Metal spring clamp on a perforated mounting rail

EMC clamps

Cable shielding properly earthed, with strain relief.

11 series · 72 varianten

Selection guide

What is your situation?

Three questions decide the choice: do the cables have connectors, does it need to be watertight and how many cables go through one opening?

Let the planner work it out

Enter the number and diameter of your cables. The planner selects entry plates, grommets for cables with plugs and EMC clamps, with article numbers and a drawing of your cabinet wall.

Open the cable entry planner

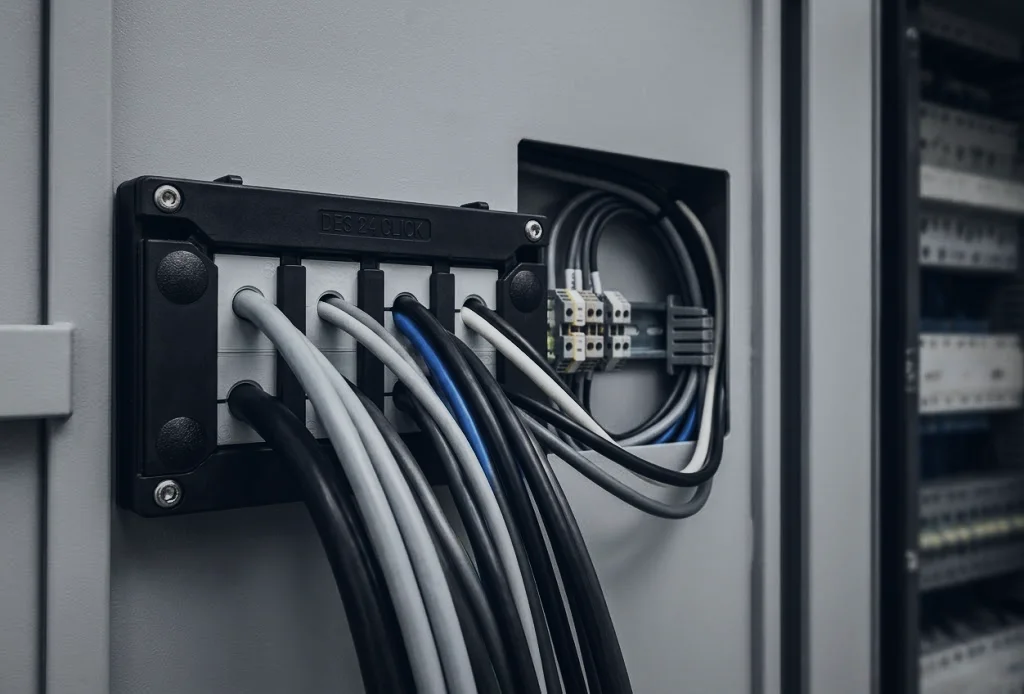

cables entering the control cabinet through a cable entry

Why Wisman

Specialist from cable carrier
to cabinet wall.

Cable management does not stop at the cable carrier. We look at the whole route, so every transition is right.

One route, one specialist: Cable carrier, cables, cable entry, strain relief and EMC from one source. No separate suppliers pointing at each other.
Advice on your cable list: Send your cables and diameters. We choose the frame, rubbers or plate and the right size.
Matched to the movement: The cable package from the configurator or ChainLogic is the basis for the cable entry in the cabinet.
All documentation at once: Datasheets and catalogue sheets per model, plus article numbers for ordering directly.

In practice

Cable entries in practice

All projects

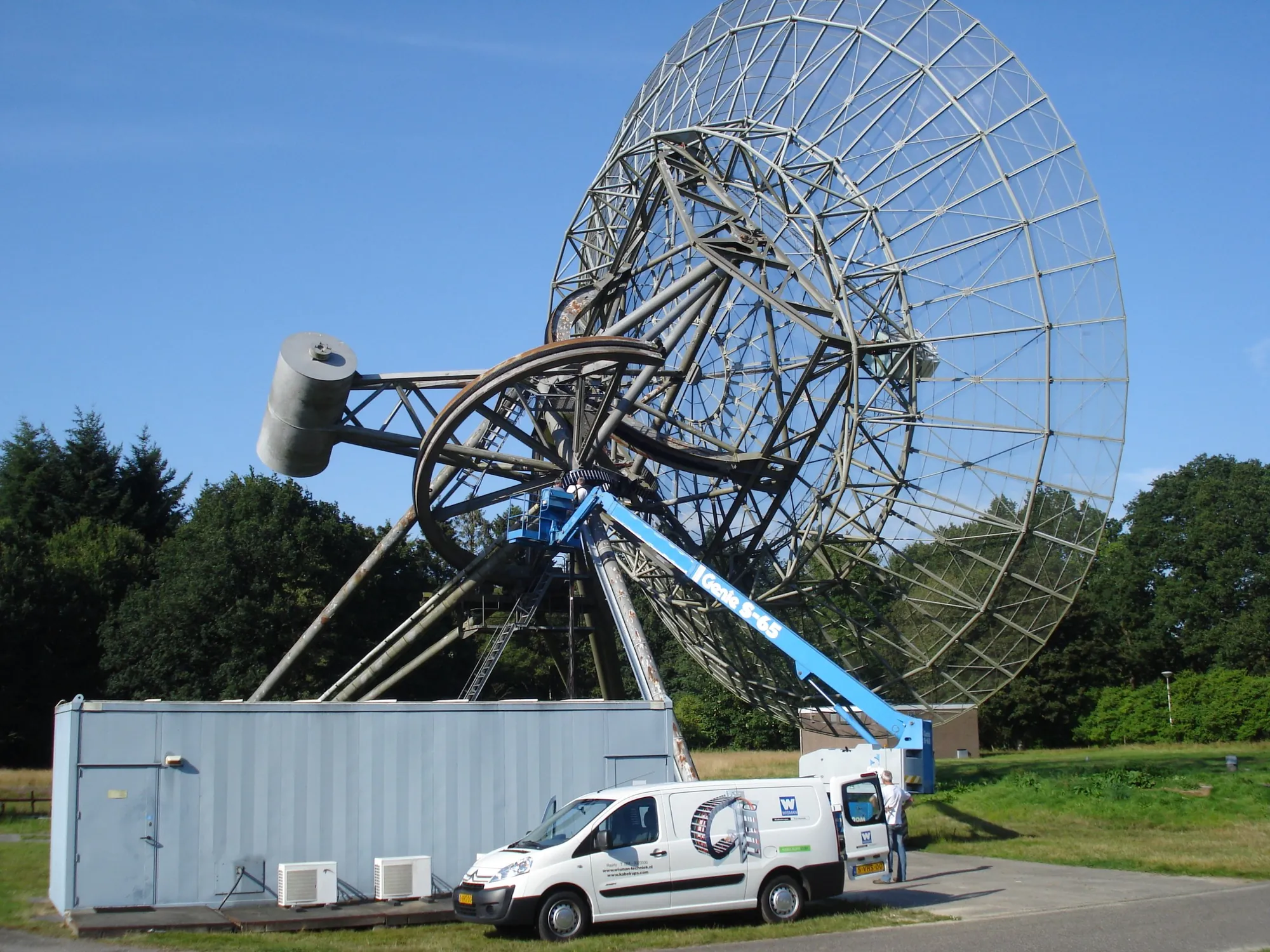

Telescopic antenna with aerial work platform and the Wisman Techniek van

Featured project

Cable management for twelve telescope antennas at the radio observatory

For twelve telescope antennas, we designed two cable carriers per telescope, for the polar axis and the declination axis, carrying 131 cables per telescope. Cable entries seal the transition to the electrical building.

Customer: Radio observatory
Sector: Research and science
Solution: Cable carriers
Cable package: 131 cables per telescope (data and power)
Assembly: Two cable carriers per telescope, 12 telescopes

Read the project
