Cable entry plates.The economical alternative to cable glands.

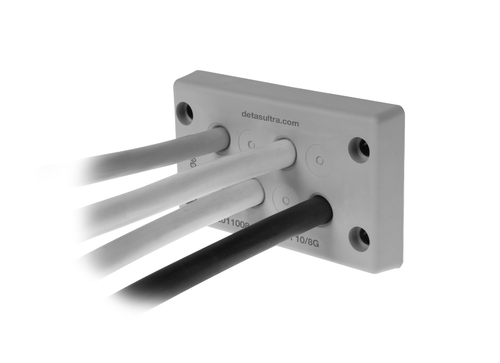

A cable entry plate replaces a row of glands with one plate with membranes. You pierce the membrane, push the cable through, and the second membrane provides strain relief and sealing. Faster to fit and more economical than separate glands.
Range
11 series in the range
Click on a series for all variants, article numbers and downloads.
DES PM 24
18 var.Affordable and reliable entry plate with high strain relief and IP rating.
High IP rating · Double membrane
PMH 6
2 var.Compact entry plate with improved strain relief and liquid-tight seal.
Double membrane
DES PDM 24
42 var.Reliable entry plate with double membrane seal for high IP protection.
High IP rating · Double membrane
DES PDM 24 ZIP
3 var.Sleek entry plate for multiple cables without connectors, with easy installation.
Customisable
DES PDM 10
2 var.Compact and reliable entry plate with double membrane seal for high IP protection.
High IP rating · Double membrane
DES PDM S
9 var.Compact entry plate with double membrane seal for reliable IP protection.
High IP rating · Double membrane
DES PDM Q
12 var.Square entry plate with double membrane seal for a high IP rating.
High IP rating · Double membrane
DES PDM M
69 var.Entry plate with metric hole dimensions and double membrane seal for high IP protection.
Opening Ø 20,5–63,5 mm · High IP rating

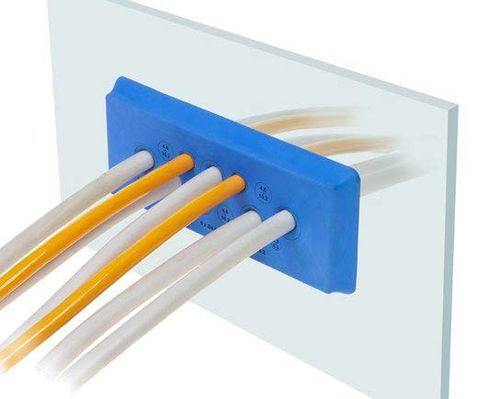

DES PDM 24 Clean
3 var.Hygienic entry plate for the food and pharmaceutical industry with high watertightness.
FDA-approved · Double membrane
DES PDM M Clean
4 var.Hygienic entry plate with metric hole dimensions for food and pharma applications.
Opening Ø 32,5–50,5 mm · FDA-approved

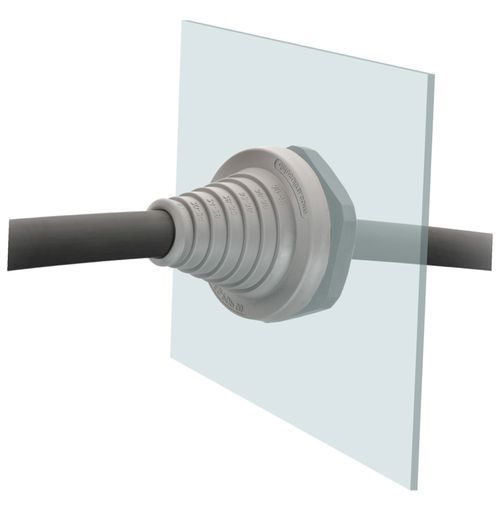

DES PDP
24 var.Robust entry grommets for large cable diameters with extra stability.
Opening Ø 25,5–75,5 mm · Cable Ø 2,5–64 mm
About the product group · Detas Ultra
Cable entry plates
- For
- Cables without connector (PDP: with connector)
- Operation
- Double membrane: seal + strain relief
- Shapes
- Rectangular, square, compact and metric round
- Hygiene
- Clean version made of FDA-approved material
Each opening in the plate has two membranes. The front membrane is pierced and closes around the cable; the second membrane clamps the cable and gives extra strain relief and a high IP rating. Nothing needs to be tightened.
There are rectangular plates for a standard cut-out, square and compact versions, round plates for metric holes (M20 to M63) and Clean versions made of FDA-approved material for food and pharma. For cables with a connector there are the DES PDP grommets up to M75.
When
When do you choose cable entry plates?
- 01Many cables without connector
- Up to more than a hundred thin cables through one plate, instead of as many glands.
- 02Speed in the workshop
- Pierce and push through. No nuts, no tools per cable.
- 03Budget matters
- More economical than individual glands, while keeping the seal and strain relief.
- 04Food & pharma
- The Clean plates have rounded shapes without dirt traps and are easy to clean.
How to choose
From cable list to the right model
Send your cable list. We choose the model and size and check that everything fits.
Send your cable list01Cut-out or round hole
Rectangular plates fit a standard cut-out; the M versions fit metric holes from M20 to M63.
02Count cables per diameter class
Each plate has a fixed layout of openings per diameter range. The table shows the number and Ø per model.
03Choose colour and material
Grey or black, and the Clean version for hygienic environments.
04Connector on the cable?
Then a DES PDP entry grommet, or a split frame or cable gland.
Application
Used in
- Switch cabinets in series production
- Food and pharmaceutical machinery
- Distribution boxes and terminal boxes
- Machine building with many sensor cables
What Wisman does for you
- Advice on your cabinet: which entry, which size, how many cables
- One point of contact from cable carrier to control cabinet wall
- Datasheets and documentation per model available immediately
- Matched to your cable package from the configurator or ChainLogic
Let the planner work it out
Which plate, and which cable in which opening? Fill in your cable list. The planner chooses the plates with the fewest cut-outs and shows what remains free, with article numbers.
Open the cable entry plannerArticle number
Search directly by article number
Do you already know which model you are looking for? Enter the model or article number and request a price straight away.
DES PM 2410 variants
View the series| Model | Article number | Cut-out (mm) | Dimensions (mm) | Cables (quantity × Ø) | View |
|---|---|---|---|---|---|
| DES PM 24/12G | 112 × 36 max. +0.5 | 144 × 46 | 12× Ø max. 15 mm | ||
| DES PM 24/14G | 112 × 36 max. +0.5 | 144 × 46 | 14× Ø max. 12.1 mm | ||
| DES PM 24/17G | 112 × 36 max. +0.5 | 144 × 46 | 5× Ø max. 10.5 mm12× Ø max. 12.6 mm | ||
| DES PM 24/18G | 112 × 36 max. +0.5 | 144 × 46 | 4× Ø max. 6.5 mm5× Ø max. 10.5 mm5× Ø max. 12.6 mm4× Ø max. 16.1 mm | ||
| DES PM 24/20G | 112 × 36 max. +0.5 | 144 × 46 | 13× Ø max. 6.5 mm7× Ø max. 12.1 mm | ||
| DES PM 24/26G | 112 × 36 max. +0.5 | 144 × 46 | 16× Ø max. 6.5 mm4× Ø max. 12.1 mm4× Ø max. 16.1 mm2× ASI | ||
| DES PM 24/42G | 112 × 36 max. +0.5 | 144 × 46 | 1× Ø max. 4.7 mm12× Ø max. 5 mm17× Ø max. 6.4 mm12× Ø max. 7.2 mm | ||
| DES PM 24/48G | 112 × 36 max. +0.5 | 144 × 46 | 48× Ø max. 6.5 mm | ||
| DES PM 24/50G | 112 × 36 max. +0.5 | 144 × 46 | 33× Ø max. 5 mm9× Ø max. 6.4 mm8× Ø max. 8.3 mm | ||
| DES PM 24/12B | 112 × 36 max. +0.5 | 144 × 46 | 12× Ø max. 15 mm |
10 of 188 variants · click a variant to view it
