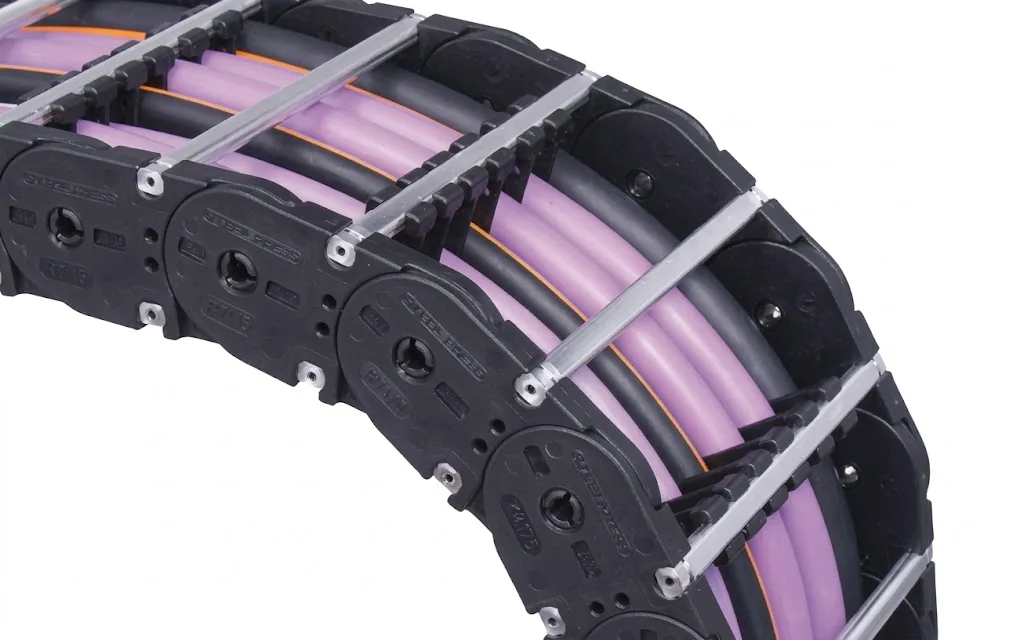

K Series cable carrier
Vario Line · Plastic · Open
Assembled to order in RuurloCost-efficient and robust cable carrier, suitable for heavy cable and hose loads.
- Inner height
- 36–58 mm
- Inner width
- 68–700 mm
- Bending radius
- 75–385 mm
- Travel length
- up to 260 m
- Pitch
- 65–90 mm
Types
2 types in the K Series
Click a type for all dimensions, performance and options. Every type can be assembled to size, complete with cables.
| Type | Inner height | Inner width | Pitch | Bending radii | Max. cable Ø | Travel length, gliding | Version | |
|---|---|---|---|---|---|---|---|---|
 | K0650Assembled to order in Ruurlo | Inner height38 mm | Inner width75–400 mm | Pitch65 mm | Bending radii75–300 mm· 6 | Max. cable Ø30 mm | Travel length, gliding220 m | VersionOpen |
 | K0900Assembled to order in Ruurlo | Inner height58 mm | Inner width100–400 mm | Pitch90 mm | Bending radii130–385 mm· 6 | Max. cable Ø46 mm | Travel length, gliding260 m | VersionOpen |
About the series
About the K Series
The K series is a cost-efficient and robust plastic cable carrier from the Vario Line, built for heavy cable and hose loads. The sturdy construction offers high stability and load capacity and is easy to install and maintain. Applications include heavy machine building, material handling, conveying and production lines, and the mining and steel industries.
- High stability and load-bearing capacity
- Sturdy construction for a long service life
- Simple installation and maintenance
- Reliable under heavy loads
- Long service life
- Low maintenance costs
Widely used in
- Types
- The K comes in 2 types: K0650, K0900.
- Sizes
- The inner height ranges from 36 to 58 mm, the inner width from 68 to 700 mm. You choose the inner width per type within that range.
- Bending radius
- The bending radius ranges from 75 to 385 mm.
- Pitch
- The pitch is 65 to 90 mm.
- Cables
- The largest type takes cables up to 46 mm in diameter.
- Travel length
- The travel length is up to 260 m, depending on type, additional load and installation.
- Open
- The links cannot be opened; the cables are inserted before installation.
- Environment
- According to the type data, the series is suitable for indoor and outdoor use, in clean and contaminated environments, for heavy duty.
Wisman Techniek in Ruurlo is the exclusive dealer of Tsubaki Kabelschlepp in the Netherlands. We assemble the K ourselves to order in our own assembly department, to length and, if desired, complete with cables and hoses.
the cable carrier configurator · free of charge
The right type in 3 minutes
- 01Fill in cables and hoses
- 02Travel length and speed
- 03Specialist checks
No account needed
Replace
Are you replacing an existing carrier?
Send a photo of the carrier or the type plate. We will find the right type and the parts to go with it.
Parts
Parts or repair
Links, crossbars and end brackets for the K Series. From stock or ordered quickly.
