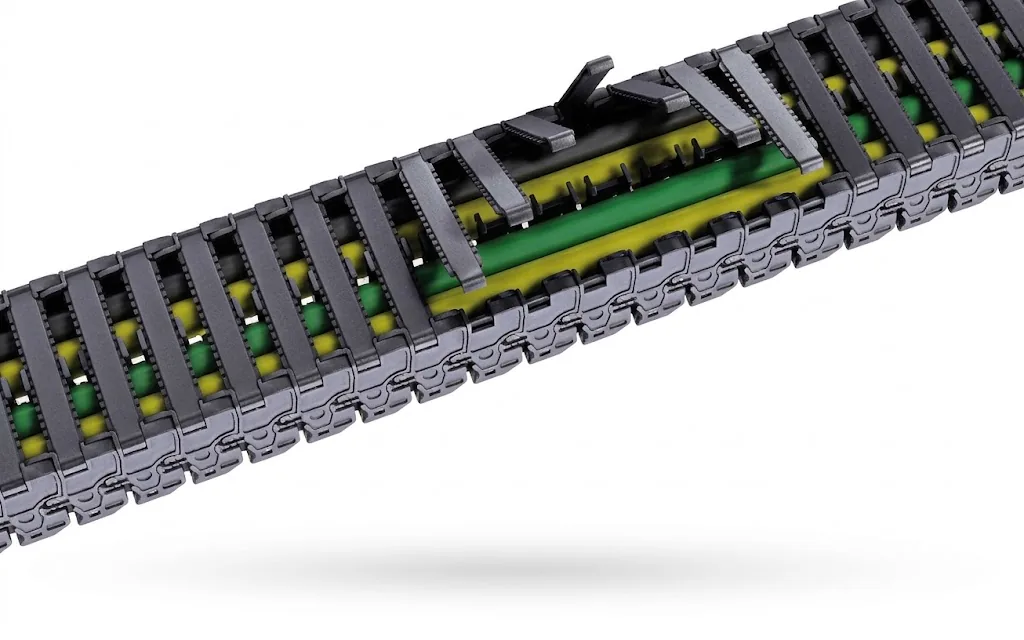

TKR Series cable carrier
Vario Line · Plastic · Open
Very quiet, low-vibration cable carrier for highly dynamic applications.
- Inner height
- 22–52 mm
- Inner width
- 20–200 mm
- Bending radius
- 40–200 mm
- Travel length
- up to 4.9 m
- Pitch
- 15–37 mm
Types
5 types in the TKR Series
Click a type for all dimensions, performance and options. Every type can be assembled to size, complete with cables.
| Type | Inner height | Inner width | Pitch | Bending radii | Max. cable Ø | Travel length, gliding | Version | |
|---|---|---|---|---|---|---|---|---|
 | TKR0150 | Inner height22 mm | Inner width20–60 mm | Pitch15 mm | Bending radii40–75 mm· 3 | Max. cable Ø | Travel length, gliding | VersionOpen |
 | TKR0200 | Inner height28 mm | Inner width40–120 mm | Pitch20 mm | Bending radii55–150 mm· 4 | Max. cable Ø | Travel length, gliding | VersionOpen |
 | TKR0370 | Inner height28 mm | Inner width40–80 mm | Pitch37 mm | Bending radii55–100 mm· 3 | Max. cable Ø | Travel length, gliding | VersionOpen |
 | TKR0260 | Inner height40 mm | Inner width50–200 mm | Pitch26 mm | Bending radii75–150 mm· 4 | Max. cable Ø | Travel length, gliding | VersionOpen |
 | TKR0280 | Inner height52 mm | Inner width50–200 mm | Pitch28 mm | Bending radii75–200 mm· 4 | Max. cable Ø | Travel length, gliding | VersionOpen |
About the series
About the TKR Series
The TKR is a very quiet, low-vibration plastic cable carrier from the Vario Line for highly dynamic applications. It runs smoothly and stays stable at high dynamics. You will find it in robotics, pick-and-place systems, high-speed machines, electronics production and precision engineering.
- Extremely quiet running
- Minimal vibration
- High dynamic stability
- Ideal for precision applications
- Very smooth operation
- Reliable at high dynamics
Widely used in
- Types
- The TKR comes in 5 types: TKR0150, TKR0200, TKR0370, TKR0260, TKR0280.
- Sizes
- The inner height ranges from 22 to 52 mm, the inner width from 20 to 200 mm. All types are available in fixed inner widths.
- Bending radius
- The bending radius ranges from 40 to 200 mm.
- Pitch
- The pitch is 15 to 37 mm.
- Travel length
- The travel length is up to 4.9 m, depending on type, additional load and installation.
- Open
- Depending on the type, the links can be opened on the outside, or cannot be opened.
Wisman Techniek in Ruurlo is the exclusive dealer of Tsubaki Kabelschlepp in the Netherlands. Popular TKR types are in stock; we assemble other versions to order, cut to length and, if required, complete with cables and hoses.
