Plastic cable carriers.Light, quiet and from stock.
For machine building, handling and automation. Plastic cable carriers are light, corrosion-free and quick to fill, from compact carriers for small axes to wide Vario Line carriers with dividers.
Range
Our range of plastic cable carriers
16 series · 50 types
Largest cable that fits, with 10% clearance (cable 10 mm → 11 mm space)
16 of 16 series · 50 types
MONO
Cable carrier for standard applications
On request- HiInner height
- 10–15 mm
- BiInner width
- 6–40 mm
- KRBending radius
- 18–50 mm
- Travel lengthTravel length
- up to 70 m
QuickTrax®
Quiet, compact cable carrier for fast installation in light industrial applications.
On request- HiInner height
- 17,6–20 mm
- BiInner width
- 15–65 mm
- KRBending radius
- 28–125 mm
- Travel lengthTravel length
- up to 80 m
TKK
Robust plastic cable carrier
On request- HiInner height
- 39 mm
- BiInner width
- 39–99 mm
- KRBending radius
- 46–95 mm
- Travel lengthTravel length
- up to 120 m
TKP35
Robust, quiet cable carrier
On request- HiInner height
- 32 mm
- BiInner width
- 16–50 mm
- KRBending radius
- 48–125 mm
- Travel lengthTravel length
- up to 2.3 m
UNIFLEX Advanced
Light, quiet all-rounder with a wide range of applications
On request- HiInner height
- 17,5–80 mm
- BiInner width
- 15–600 mm
- KRBending radius
- 28–500 mm
- Travel lengthTravel length
- up to 200 m
EasyTrax®
Light plastic cable carrier with unique click system
On request- HiInner height
- 4,6–25 mm
- BiInner width
- 7–78 mm
- KRBending radius
- 10–200 mm
- Travel lengthTravel length
- up to 80 m
PROTUM®
Specially designed for modern office and workplace environments
On request- HiInner height
- 10–21,5 mm
- BiInner width
- 50–52 mm
- KRBending radius
- –
- Travel lengthTravel length
- –
K
Cost-efficient and robust cable carrier
Assembled to order in Ruurlo- HiInner height
- 36–58 mm
- BiInner width
- 68–700 mm
- KRBending radius
- 75–385 mm
- Travel lengthTravel length
- up to 260 m
About the product group · Tsubaki Kabelschlepp
Plastic cable carriers
- Material
- Glass-fibre-reinforced polyamide
- Version
- Open (cross bars) or closed (tube)
- Opening
- Inside or outside, per series
- Assembly
- Self-supporting, gliding, hanging or standing
A plastic cable carrier safely guides cables and hoses along with a moving machine part. It prevents cables from kinking, chafing or twisting, so they reach the service life they were designed for.
Tsubaki Kabelschlepp divides its plastic range into lines. Basic Line is the economical standard for most machines. Basic Line Plus adds fast filling and extra strength. Vario Line is modular: you put together the width, crossbars and dividers for each application. Enclosed carriers protect cables against swarf and dirt.
We calculate your application for travel length, speed and cable package, and deliver the carrier complete: to length, filled and with end connectors.
Why
What makes plastic cable carriers strong
- 01Light
- Less mass means higher speeds and accelerations with the same drive.
- 02Quiet
- Damped links for machines with people working alongside.
- 03Corrosion-free
- No rust in wet, cold or cleaning-intensive environments.
- 04Quick to fill
- Cross bars that can be opened: place cables without dismantling the carrier.
How to choose
What to look out for when choosing
Not sure? Send us your details and we'll calculate it for you free of charge.
Calculate it in the cable carrier configurator01Inner height
The thickest cable plus about 10% clearance. Hoses get 20%.
02Inner width
The sum of all cables with clearance, plus space for dividers.
03Bending radius
At least what the thickest cable specifies, often 7.5 to 10 × the diameter.
04Travel length and installation
Short travel lengths self-supporting, long travel lengths gliding in a channel.
05Environment
Swarf or dirt? Choose an enclosed version or a cover.
Application
Used in
- CNC and machining machines
- Handling and pick-and-place
- Packaging and food machines
- Linear axes and gantries
- Intralogistics and storage systems
What Wisman does for you
- Calculate your application
- Made to length and delivered filled
- End connectors and strain relief
- Stock in Ruurlo
- One dedicated point of contact, from advice to delivery
From the range
Popular series
In practice
Plastic cable carriers in practice
Featured project

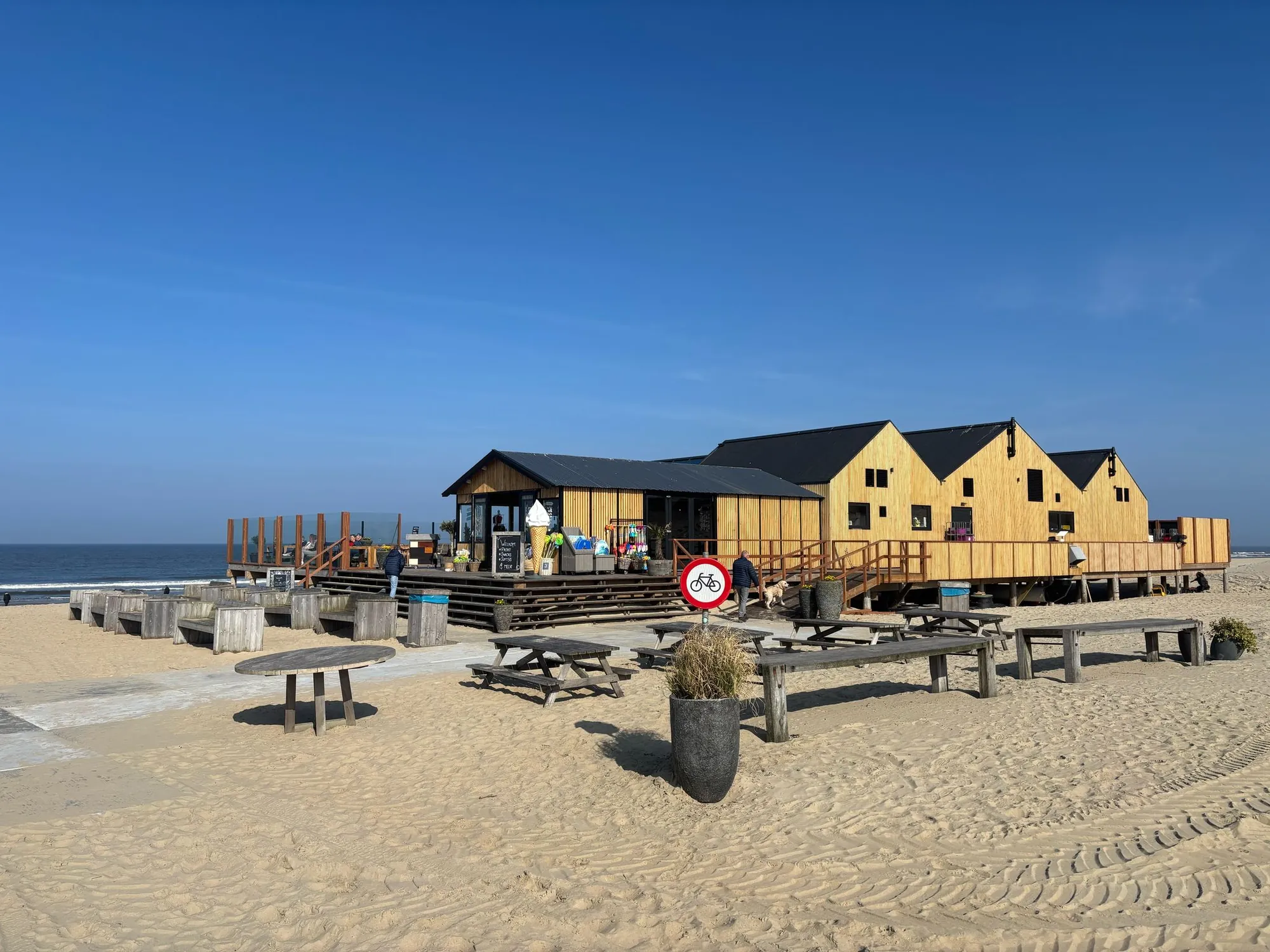

Cable carrier for a sliding glass roof at a beach pavilion on Texel
For the sliding glass roof of a beach pavilion on Texel, we advised VEM Installatie Techniek to use plastic cable carriers from the UNIFLEX series: lightweight, quiet and resistant to salt and sand.
- Customer
- VEM Installatie Techniek
- Location
- Texel
- Sector
- Construction and installation
- Solution
- Cable carriers
- Environment
- Outdoors by the sea, salt, sand and wind
